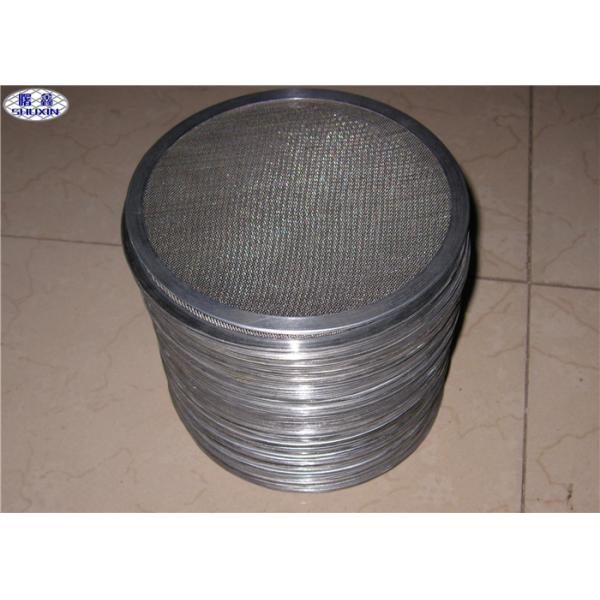

Multi-layer composite Stainless Steel Filter Discs for 13 and 47 mm with edge
Stainless Steel Filter Disc Generally used in petroleum, chemical, pharmaceutical, chemical plants.It is made of Stainless Steel Wire Mesh, Black Wire Cloth and other Wire Mesh through Special Model by punching.
Brief Introduction
1. Shape of Filter Disc, Rectangular, square, round, oval, ring, rectangular, cap, waist, shaped.
2. Structure of Filter Disc, Single layer, double layer, multi-layer.
3. processing technic, Double or three-spot welding, There are generally 4-10 welding spot, can also be done according to customer requirements with single-layer or double layer edge.
4. Material, Stainless Steel Wire Mesh, Galvanized Square Wire Mesh, Black Wire Cloth and so on.
5. Material of edge, Stainless steel plate, copper, galvanized sheet, aluminum, rubber and so on.
6. Diameter of Filter Disc
round shape: diameter:44 to 600mm
toroidal shape::inner diameter 18 to 250mm, outer diameter 50 to 350mm
rectangular shape: width 50 to 100mm, length 60 to 400mm
we can manufacture from 8 to 80 mesh for plain weave and twill weave and from 12x64 mesh to 40x200 mesh for dutch weave.
Classification
According to the Weave Type of Material, It can be Stainless Steel Woven Wire Mesh, Copper Wire Mesh, Dutch Weave Filter Cloth,Sintered Stainless Steel Wire Mesh,Black Wire Cloth, Galvanized Square Wire Mesh, Expanded Metal Wire Mesh, Perforated Metal Mesh and other metal mesh.
Quick Specifications
| Mesh |
Wire Dia(mm)
Inch
|
Open Area(%) |
| 30 x30 |
.0120 |
40.8 |
| 30 x30 |
.0095 |
51.0 |
| 40 x40 |
.0100 |
36.0 |
| 50 x50 |
.0055 |
52.6 |
| 60 x60 |
.0060 |
41.2 |
| 60 x60 |
.0045 |
53.3 |
| 80 x80 |
.0055 |
31.4 |
| 100 x100 |
.0045 |
30.3 |
| 100 x100 |
.0040 |
36.0 |
| 120 x120 |
.0026 |
47.3 |
| 150 x150 |
.0026 |
37.4 |
| 165 x165 |
.0019 |
47.1 |
| 180 x180 |
.0023 |
34.7 |
| 200 x200 |
.0019 |
60.6 |
| 230 x230 |
.0014 |
46.0 |
| 250 x250 |
.0016 |
36.0 |
| 270 x270 |
.0016 |
32.2 |
| 300 x300 |
.0012 |
29.7 |
| 325 x325 |
.0014 |
30.0 |
| 400 x400 |
.0011 |
31.4 |
| 500 x500 |
.0010 |
25.0 |
Application
Stainless Steel Filter Disc, can be used for rubber, plastic industry, grain, food oil separation, oil, oil refining, chemical, light industry, medicine, metallurgy, machinery, ships, automobile tractors and other industry ' s Distillation, absorption, evaporation, filtration and other processes to eliminate entrainment in the vapor or gas droplets and liquid foam, and cars used as air filters.
